Carbon Steel Casting Flange Factory

10

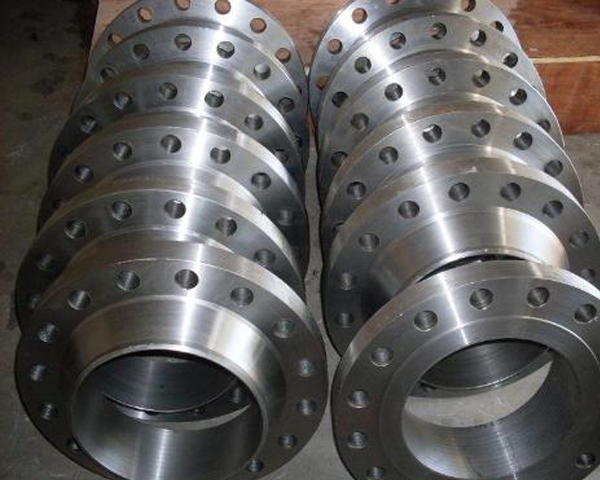

Name: Carbon Steel Casting Flange Factory
Material Carbon steel,Alloy steel,Stanless steel,Low-temperature steel,High performance
Thinkness: sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs
Standards: ASME B16.9-2007, EN10253-1-1999, DIN2605-1-1992,JIS B2311-2009 JIS B2312-2009
Certificate: API Q1-1958,ISO9001:2008,TUV,SGS,CCS,ETC

http://www.stpipefitting.cn/product/flanges/
  Plate welded steel pipe flanges is also called lap welding flange.Flat welding flange and pipe connection is to insert the pipe flange hole to the appropriate position, then take welding.Flat welding flange is suitable for the pressure level is lower, the pressure fluctuation, the vibration and shock were not serious in the pipeline system.Flat welding flange advantages in flat welding flange welding assembly for more easily, and the price is cheaper, thus has been widely used.Large flat welding flange specifications DN10 - DN1000 with flat welding steel pipe flange neck reference standard chemical: HG20593-2009

  HG20615-2009.

  National standards: GB/T9119-2000

  GB/T2555-81

  The mechanical standard: JB/T81-94

  JB/T74-94.

  JB/T75-94.

  Marine standards:

  CB M1001-81.

  Using pressure PN0.25 MPa, PN0.6 MPa, PN1.0 MPa, PN1.6 MPa, PN2.5 MPa, PN4.0 MPa

  Product category all flat plate flange (FF), tu panel flange (RF)

  Manufacturing materials stainless steel (304, 316, etc.), carbon steel (20 # 25#, etc.)
